Schlage EL3000HD Series Heavy Duty Mortise Locks

Features

• Exceptional quality and reliability - Utilizing high-

grade materials, including a SUS316 forend and

strikeplate which offer enhanced resistance to

corrosion while maintaining a polished appearance

for your door

• Heavy duty - Undergone a rigorous testing of 2

million cycles

• Offers a comprehensive selection of 7 functions to

accommodate various project requirements

• Enhanced security - Undergone extensive testing to

meet the highest EN12209 grade standards, providing

the utmost level of security for your premises

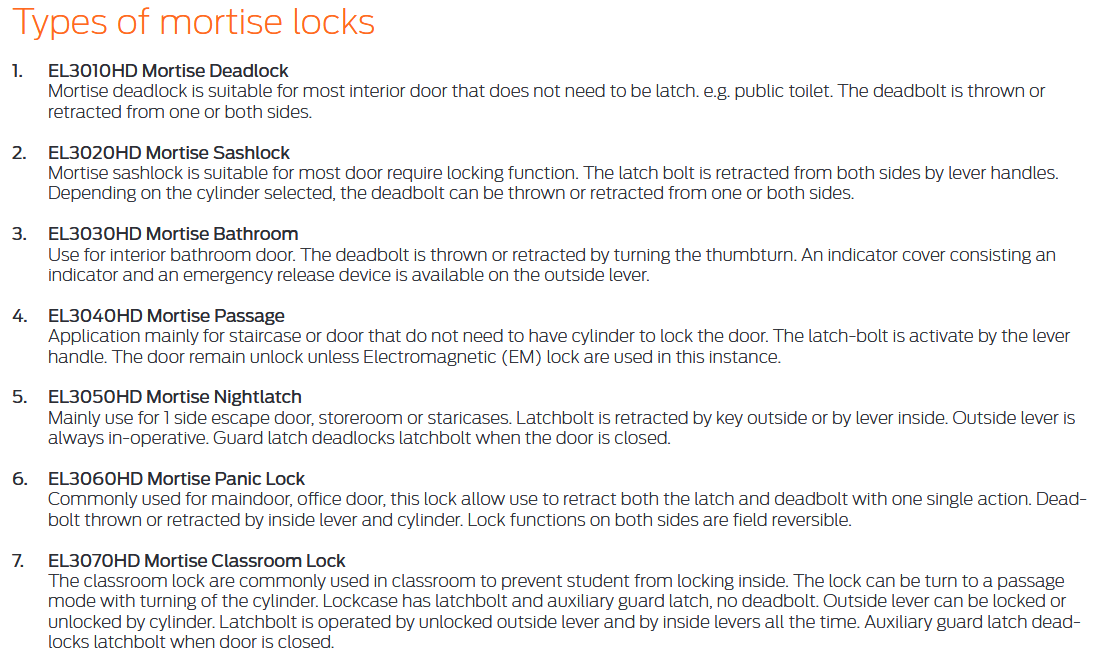

Types of mortise locks

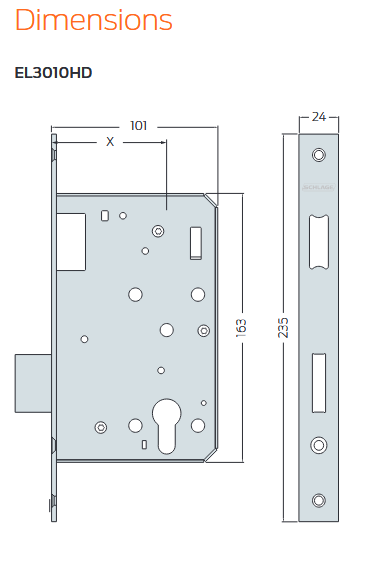

1. EL3010HD Mortise Deadlock

Mortise deadlock is suitable for most interior door that does not need to be latch. e.g. public toilet. The deadbolt is thrown or

retracted from one or both sides.

2. EL3020HD Mortise Sashlock

Mortise sashlock is suitable for most door require locking function. The latch bolt is retracted from both sides by lever handles.

Depending on the cylinder selected, the deadbolt can be thrown or retracted from one or both sides.

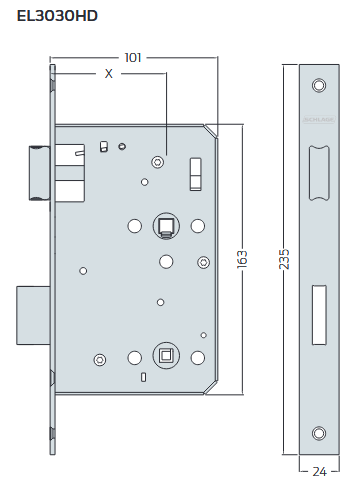

3. EL3030HD Mortise Bathroom

Use for interior bathroom door. The deadbolt is thrown or retracted by turning the thumbturn. An indicator cover consisting an

indicator and an emergency release device is available on the outside lever.

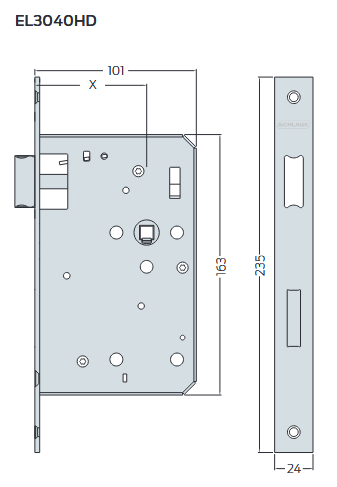

4. EL3040HD Mortise Passage

Application mainly for staircase or door that do not need to have cylinder to lock the door. The latch-bolt is activate by the lever

handle. The door remain unlock unless Electromagnetic (EM) lock are used in this instance.

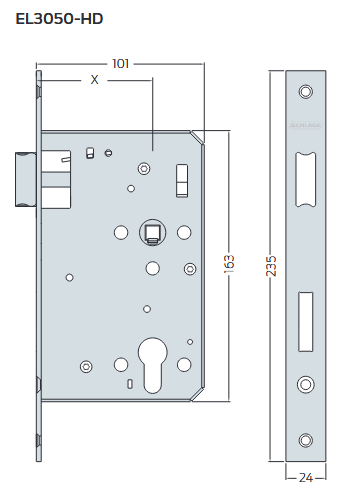

5. EL3050HD Mortise Nightlatch

Mainly use for 1 side escape door, storeroom or staricases. Latchbolt is retracted by key outside or by lever inside. Outside lever is

always in-operative. Guard latch deadlocks latchbolt when the door is closed.

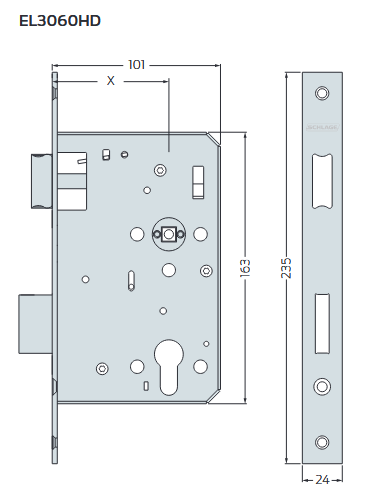

6. EL3060HD Mortise Panic Lock

Commonly used for maindoor, office door, this lock allow use to retract both the latch and deadbolt with one single action. Dead-

bolt thrown or retracted by inside lever and cylinder. Lock functions on both sides are field reversible.

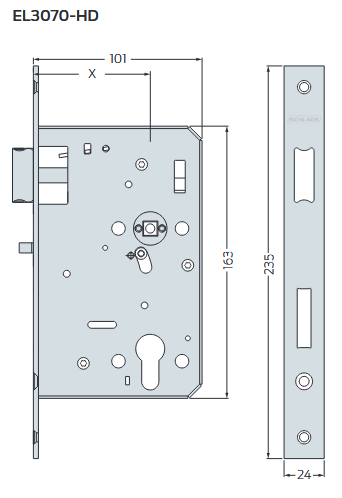

7. EL3070HD Mortise Classroom Lock

The classroom lock are commonly used in classroom to prevent student from locking inside. The lock can be turn to a passage

mode with turning of the cylinder. Lockcase has latchbolt and auxiliary guard latch, no deadbolt. Outside lever can be locked or

unlocked by cylinder. Latchbolt is operated by unlocked outside lever and by inside levers all the time. Auxiliary guard latch dead-

locks latchbolt when door is closed.

Escape Functions

Escape function locks for example panic lock and classroom lock are designed so that they can be operated by a single action on

the lever, in the direction of the escape route, which will withdraw the latchbolt and the deadbolt simultaneously to give immediate

escape.

Escape locks are certified for use with specific lever furniture which has been assessed as suitable for use in an emergency applica-

tion. The furniture is supplied with special split spindles which allow the internal and external handles to operate independently
